Welcome to another entry in the Kinho’s Homelab Series. We’re picking up where we left off in the previous entry Securing my Network with Tailscale, and today we continue by installing the Greek engineering helmsman ⎈, the almighty Kubernetes . This will serve as our main orchestration platform to run all the applications we want in our lab throughout the series.

We will make some modifications to improve the base installation of k3s by adding the powerful Cilium as our CNI plugin and kube-proxy replacement. Along the way, I’ll discuss a few decisions regarding the configuration of all of this software.

2. Orchestration Platform and Networking (K3s + Cilium)

Deciding on a Kubernetes Distro

Rolling your own Kubernetes on-prem can usually be done in multiple ways. You could go for Kubernetes the Hard Way if you really want to understand the guts of Kubernetes, installing each component to create the control plane, such as the container runtime, etcd distributed key-value database, API server, controller manager, scheduler, kubelet, and so on.

A more practical way of installing Kubernetes is with kubeadm , which makes the process much easier. You can follow along this fantastic iximiuz labs tutorial if you’re interested in setting it up.

All that said, in the previous entry we reviewed grandma’s laptop specs, which are indeed very tight (until I bring a more powerful node as the control plane). Considering that, I needed a lighter Kubernetes distribution. Enter k3s , a fully compliant Kubernetes distribution by the Rancher team that is great for edge, embedded, and of course our use case: homelab.

Installing k3s

We want to prepare the installation of Cilium as our CNI; therefore, we’ll apply some custom configuration options when installing k3s. That roughly translates to doing a bare minimum k3s installation by disabling built-in components: Flannel CNI, Traefik, ServiceLB, and kube-proxy.

Configuring the Control Plane

We can set up the options in a unified YAML file, which we can pass to the k3s installation script. The configuration is as follows:

flannel-backend: "none"
disable-kube-proxy: true
disable-network-policy: true
disable:
  - traefik
  - servicelb
cluster-init: true

Note how I specify the cluster-init field so that the cluster initializes with embedded etcd rather than the default SQLite. You can check all the possible configuration options for the server here .

Let’s install k3s with the configuration file by running the following command:

curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="server" sh -s - --config=$HOME/k3sconfig.yaml

Now, if we check our cluster, we should see the following:

sudo kubectl get no

NAME      STATUS   ROLES                AGE    VERSION
sliffer   Ready    control-plane,etcd   0s     v1.34.3+k3s1

Notably, if we take a look at coredns, local-path-provisioner, and metrics-server running in the kube-system namespace, they are in a pending state. That is because they rely on the CNI to start up. If you went with the default installation of k3s, everything should work. However, we will prepare Cilium to take over these components.

sudo kubectl get po -n kube-system

NAME                                      READY   STATUS    RESTARTS       AGE
coredns-7f496c8d7d-pd7v9                  0/1     Pending   0              1m
local-path-provisioner-578895bd58-v5vmk   0/1     Pending   0              1m
metrics-server-7b9c9c4b9c-jgwz4           0/1     Pending   0              1m

Adding Worker Nodes (Optional)

If you want to expand your cluster with additional worker nodes, start by retrieving the token located at /var/lib/rancher/k3s/server/token using the following command:

sudo cat /var/lib/rancher/k3s/server/token

Similar to how we set up our control plane, we specify the following configuration for our agent node:

token: <your-k3s-token>
server: https://<your-ip>:<your-port>

node-label:
  node-role.kubernetes.io/worker=true

Lastly, we install k3s on the agent using the following command:

curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="agent" sh -s - --config=$HOME/k3sagent.yaml

Checking the status of our nodes with kubectl:

kubectl get no

NAME      STATUS   ROLES                AGE    VERSION
kuriboh   Ready    worker               1m     v1.34.3+k3s1
sliffer   Ready    control-plane,etcd   3m     v1.34.3+k3s1

About the CNCF Landscape

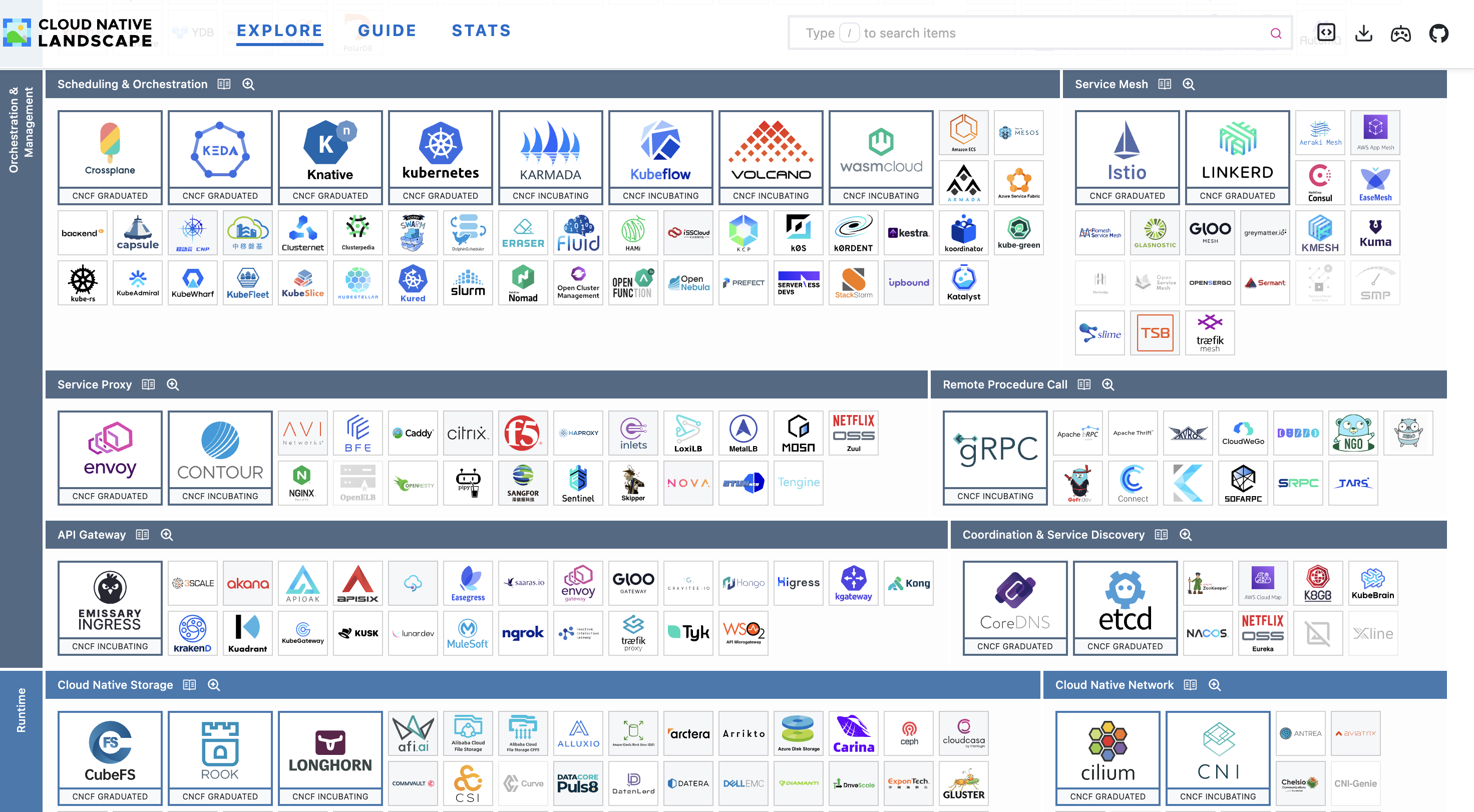

The CNCF Landscape can be intimidating with the large number of projects available that contribute to modern cloud computing in different categories, such as orchestration with the golden child Kubernetes, mature coordination and discovery with CoreDNS, and continuous delivery systems that enable GitOps, such as Argo CD and Flux. It can be really easy to spend a whole day scrolling through the different projects and learning about their use cases.

In the past, I had known about Cilium, but I did not fully understand what it did, partly because I was new to Kubernetes and partly because I had not seen how its functionalities fit into the larger landscape. Now, let’s get practical about why we want to configure Cilium in our k3s cluster.

Unifying the Cluster’s Network with Cilium

From the official website , we get the following definition:

Cilium is an open source, cloud native solution for providing, securing, and observing network connectivity between workloads, fueled by the revolutionary Kernel technology eBPF

In the previous section, we purposely disabled most of the k3s built-ins related to networking, including Flannel CNI, Traefik LB, ServiceLB, and kube-proxy. Each of these components corresponds to a specific layer in our networking stack. This is where Cilium comes in. We will use it to unify our networking stack, serving as our CNI plugin for pod networking, providing L4 service routing, and acting as an L7 load balancer for setting up Gateway API and ingress.

How Can Cilium Achieve All of That?

Cilium is based on eBPF , a powerful technology that can dynamically program the kernel. This enables more performant routing that is not based on traditional iptables, as is the case with kube-proxy. Its eBPF hashmaps enable constant-time performance, unlike the linear scans used by iptables. This means that as the number of services grows, performance stays consistent.

Not only that, but because Cilium integrates neatly with the Linux kernel, it provides network observability and security policies for our cluster.

Whereas other CNIs provide basic connectivity, Cilium offers powerful features such as:

• Faster native pod-to-pod networking with eBPF (no iptables overhead)
• Real-time L3/L4 observability with Hubble
• Built-in security with WireGuard encryption
• Advanced network policy enforcement at multiple layers
• MetalLB replacement with LB IPAM and L2 announcements

Needless to say, Cilium is much more than just a CNI. It is a key component that provides a fast, secure, and observable network stack adaptable to many needs.

Installing Cilium

Downloading the CLI

Cilium can be installed in a couple of ways, either via Helm charts or with its CLI. We will install the Cilium CLI for Linux using the following command:

CILIUM_CLI_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/cilium-cli/main/stable.txt)
CLI_ARCH=amd64
if [ "$(uname -m)" = "aarch64" ]; then CLI_ARCH=arm64; fi
curl -L --fail --remote-name-all https://github.com/cilium/cilium-cli/releases/download/${CILIUM_CLI_VERSION}/cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum}
sha256sum --check cilium-linux-${CLI_ARCH}.tar.gz.sha256sum
sudo tar xzvfC cilium-linux-${CLI_ARCH}.tar.gz /usr/local/bin
rm cilium-linux-${CLI_ARCH}.tar.gz{,.sha256sum}

Configuring Cilium Installation

Now that we have the CLI, we install Cilium. Before doing that, we need the CLI to have access to the cluster, so we will set the KUBECONFIG environment variable to point to our k3s.yaml file at /etc/rancher/k3s/k3s.yaml. If you want, you can move the file to its usual location under .kube/config using the following:

mkdir -p $HOME/.kube
sudo cp -i /etc/rancher/k3s/k3s.yaml $HOME/.kube/config
echo "export KUBECONFIG=$HOME/.kube/config" >> $HOME/.bashrc
source $HOME/.bashrc

We will now specify an IP and PORT for our installation. For the port, we can use the default API server port . For the IP, configure a static IP for this machine at your gateway, then use that IP here. We can install Cilium with the following command:

IP=<YOUR-IP>
PORT=<YOUR-PORT>
cilium install --set k8sServiceHost=${IP} \
--set k8sServicePort=${PORT} \
--set kubeProxyReplacement=true \
--set hubble.relay.enabled=true \
--set hubble.ui.enabled=true \
--set ipam.operator.clusterPoolIPv4PodCIDRList="10.42.0.0/16"

ipam.operator.clusterPoolIPv4PodCIDRList="10.42.0.0/16"

ipam.mode=kubernetes

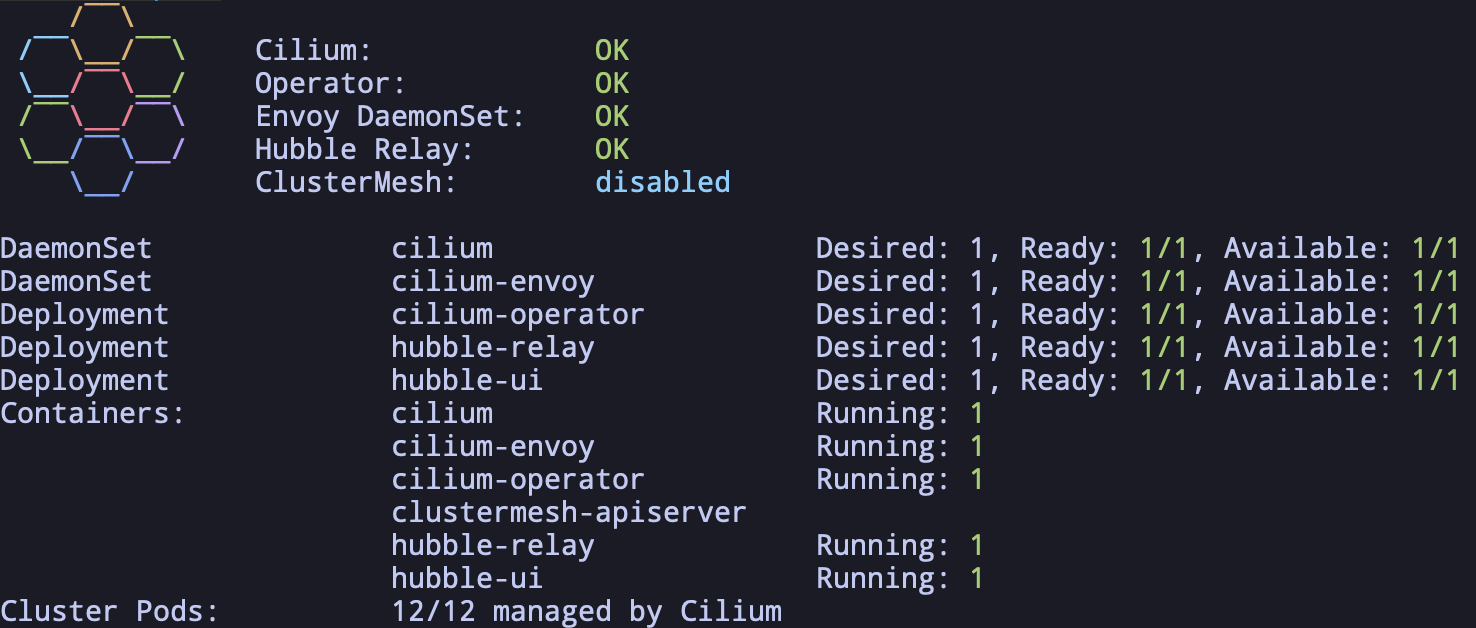

Let’s check our installation status with the following command:

cilium status --wait

Finally, if we check our previous core components under the kube-system namespace that were in pending state:

NAME                                      READY   STATUS    RESTARTS       AGE
coredns-7f496c8d7d-pd7v9                  1/1     Running   0              3m
local-path-provisioner-578895bd58-v5vmk   1/1     Running   0              3m
metrics-server-7b9c9c4b9c-jgwz4           1/1     Running   0              3m

Network Traffic Observability with Hubble

Let’s bring up the Hubble UI to observe network traffic flow. For this demonstration, I’ll show traffic from the argocd namespace (a sneak peek of what’s coming in the next article about GitOps!)

kubectl port-forward service/hubble-ui -n kube-system  8080:80

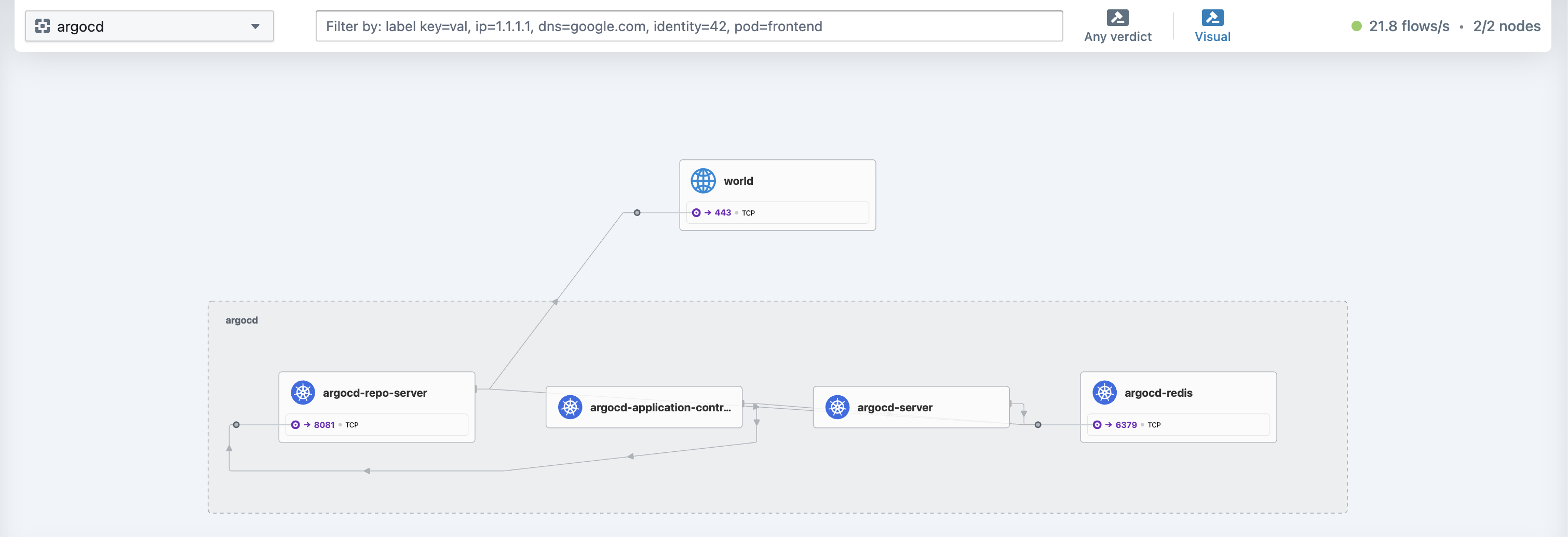

Very cool! Just like that we can see all our resources in the namespace, and the network connections between them. Notably, we see that the argocd-repo-server has an egress to the world, in other words, the internet. Let’s take a look more deeply into our network traffic table.

We see that traffic is routed from pod with IP 10.42.0.12 to destination IP 140.82.112.3 via 443/TCP. That destination IP might ring some bells as to what the argocd-repo-server traffic is to, we can do some dns inspection with dig like so:

dig -x 140.82.112.3  +short

lb-140-82-112-3-iad.github.com.

Aha! It is github.com load balancer IP. This makes sense since Argo will try to sync from the state declared as source which is my github repository.

At this point, our cluster should be fully connected with Cilium and all the appropriate components running on both the control plane and worker nodes:

  graph TD
    subgraph K3s_Cluster["K3s Cluster"]
      subgraph Worker["Worker Node (agent)"]
            k3sAgent["Agent Components"]
            subgraph CiliumW["Cilium"]
                CiliumDS["Cilium DaemonSet"]
                CiliumEnvoy["Cilium Envoy"]
            end
        end

        subgraph Master["Control plane"]
            K3scomponets["Kubernetes Control Plane Components"]
            subgraph CiliumM["Cilium"]
                CiliumDSM["Cilium DaemonSet"]
                CiliumEnvoyM["Cilium Envoy"]
                CiliumOperator["Cilium Operator"]
            end
        end
    end

    %% Style the subgraphs
    style K3s_Cluster fill:#f0f8ff,stroke:#333,stroke-width:2px
    style Master fill:#ffefc1,stroke:#333,stroke-width:1.5px
    style Worker fill:#c1ffe7,stroke:#333,stroke-width:1.5px
    style CiliumW fill:#d0d0ff,stroke:#333,stroke-width:1px
    style CiliumM fill:#d0d0ff,stroke:#333,stroke-width:1px

cilium connectivity test

Wrapping Up

That’s it for this entry! We’ve made tremendous progress at the Homelab. We installed k3s as kubernetes distro of choice for orchestration and unified the network stack with Cilium, replacing the default Flannel CNI, kube-proxy, and other built-ins.

I’m particularly excited at exploring more of Cilium’s capabilities. Hubble already is an incredible component that comes out of the box for L3/L4 observability, and the sneak peek of ArgoCD’s network traffic was just a taste of what’s possible!

We now have our own orchestration platform, but it’s looking a little empty. Not only that, but all of our installations to the cluster have been manual; we certainly need to improve this. In the next entry, we will start setting up some applications to run in the cluster and work on transitioning into a GitOps workflow! There’s still plenty of exciting work ahead. Catch you in the next one.
